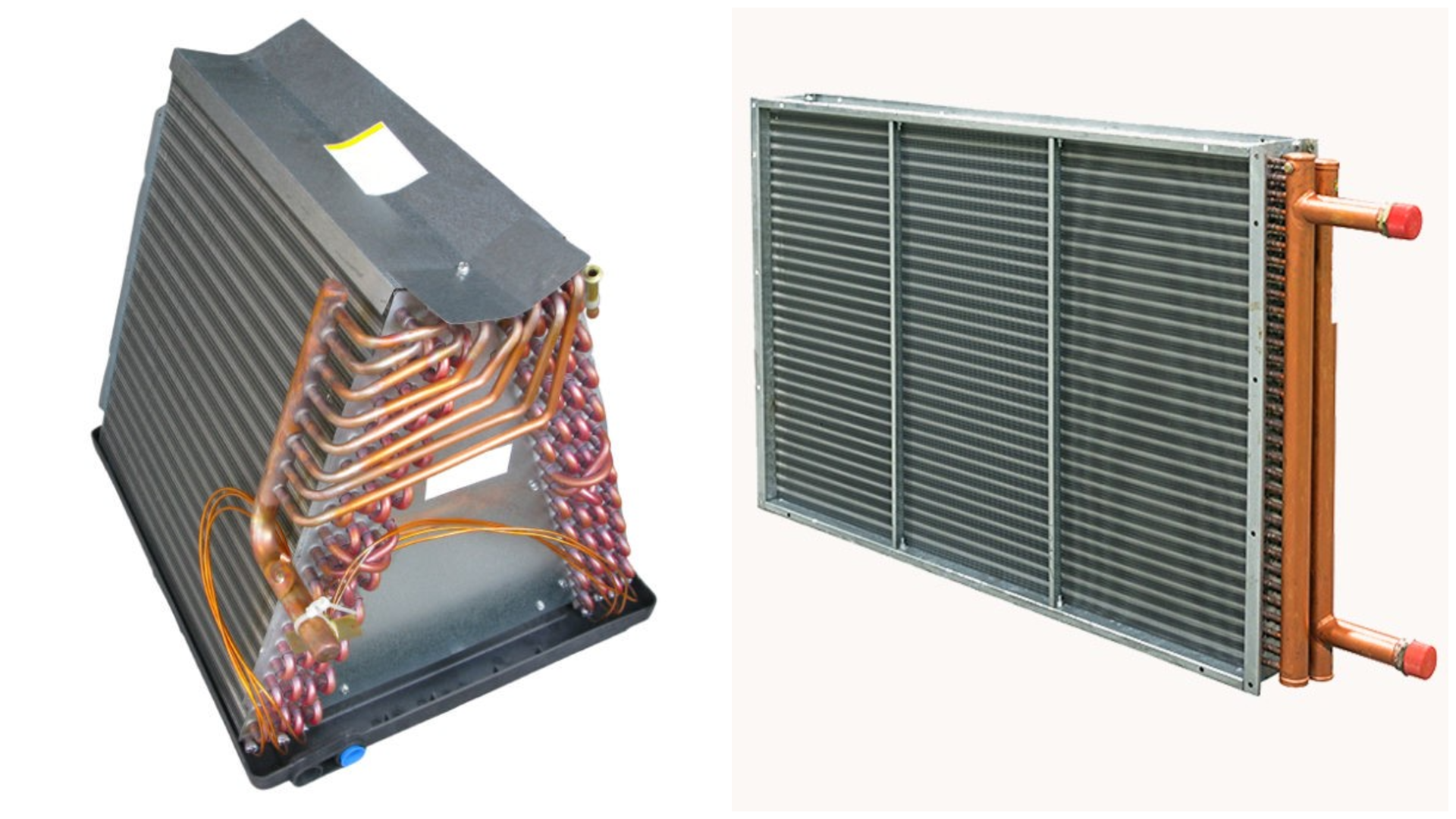

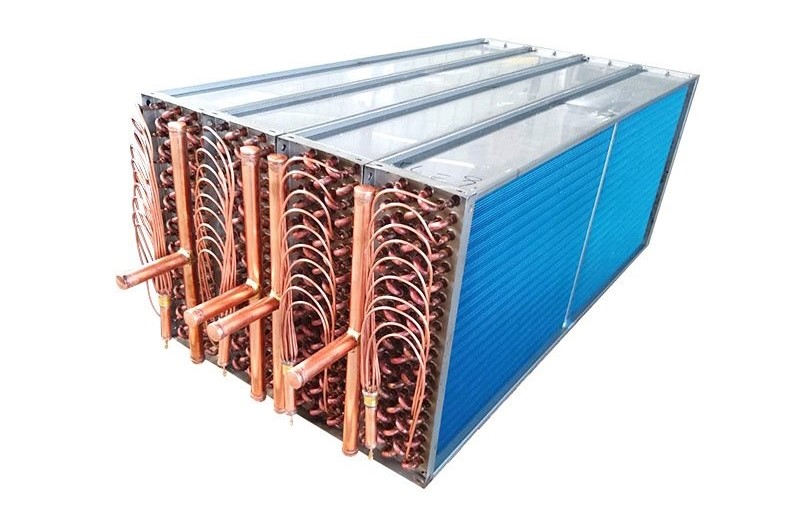

Evaporator Coil

Powertroniks (India) Coils

Powertroniks (India) Coils is a leading manufacturers, suppliers, exporters of a wide choice of highest quality Evaporator Coils made to order in a wide range of cooling needs. Our committed pursuit to excellence ensures that each coil we build is engineered to parcel out optimal performance, reliability, and durability. Some of the important parts of any refrigeration and air-conditioning system include Evaporator coils, through which heat is absorbed from the environment and given to the refrigerant.

The Importance of a Clean Evaporator Coil

The efficiency of your system depends on the cleanliness and regular maintenance of your evaporator coil. Your AC unit's energy consumption can rise by up to 30% due to dirty coils. Poorly maintained coils can also result in additional issues with the system, including frozen coils, an overheated compressor, and poor cooling efficiency because of limited heat transmission.

At Powertroniks, Coils efficiency and durable life are the insignias of all refrigeration and air conditioning systems. With this in mind, our Evaporator coils will be strongly constructed, incorporating advanced heat exchange technology that will guarantee reliability of operation and energy efficiency. We also provide customized solutions to cater to specific needs, enabling our clients to reap the benefits of customized products to meet their specific cooling requirements.

Our Product Range
Tube OD 7 mm 7 mm 7 mm 9.52 mm 9.52 mm 12.7 mm 12.7 mm
Tube Pitch 21 mm 22 mm 25 mm 25.4 mm 25.0 mm 30.0 mm 31.75 mm
Row Pitch 12.7 mm 19.05 mm 21.65 mm 22 mm 21.65 mm 26.0 mm 27.5 mm
Fin Thickness (mm) 0.095 ~ 0.25 0.095 ~ 0.25 0.095 ~ 0.25 0.095 ~ 0.30 0.095 ~ 0.30 0.095 ~ 0.30 0.095 ~ 0.30
FPI (mm) 7 ~ 22 6 ~ 22 6 ~ 22 4 ~ 22 4 ~ 22 Mar-22 Mar-22
Expansion Length (mm) 150 ~ 2500 150 ~ 2500 150 ~ 12000 150 ~ 12000 150 ~ 12000 150 ~ 12000 150 ~ 12000
Fin Type Plain, Louver Plain, Louver Plain, Louver Plain, Louver, Sine Wave Plain, Louver, V-Waffle Plain, Louver, Sine Wave Plain, Louver, Sine Wave
Casing / Sheet Metal GI, AL, Cu, Brass and SS
Fin Material AL and Copper
Anticorrosion Coating Coating Types: Powder, Heresite, Nano, CED, Tin or as per customer requirement **
Testing Hydraulic / Nitrogen testing @450 PSI
Technical Specification
FIN PATTERN
Dimensions are in mm (Cu/Alu)		 MECHANICAL EXPANDER FLEXPANDER FPI Range FIN Gap (mm) Fin Surface
Finned Length No. of Holes No. of Rows Finned Length No. of Holes No. of Rows
7 mm 21 × 12.7 2500 76 Flexible 8000 Flexible Flexible 7 ~ 22 1.2 ~ 3.6 Plain, Louver
7 mm 25 × 21.65 2500 63 Flexible 12000 Flexible Flexible 6 ~ 22 1.2 ~ 4.23 Plain, Louver
9.52 mm 25.4 × 22 2500 50 Flexible 12000 Flexible Flexible 4 ~ 22 1.2 ~ 6.35 Plain, Louver
9.52 mm 25.0 × 21.65 2500 63 Flexible 12000 Flexible Flexible 4 ~ 22 1.2 ~ 6.35 Plain, Louver
12.7 mm 30.0 × 26.0 12000 Flexible Flexible 3 ~ 22 1.2 ~ 8.46 Plain, Louver
